SunWise Hot Sell 450W 550W 600W 700W Half Cell PV Module Mono Solar Panel 9BB

Bluesun EU Stock Solar Monocrystalline Cells Panels Solares 550 Watt

Original price was: $2.44.Current price is: $1.44.

Brand Name:Bluesun
Model Number:BSM560M10-72HPH
Place of Origin:Anhui, China
Cell size:182mmx182mm
Type:Half Cell
Panel Dimensions:2278*1134*35mm
Panel Efficiency:21.68
Certificate:CE TUV
Warranty:25 years warranty
Cell Type:Monocrystalline
Cell Dimensions:182*91mm
Cell Arrangement:144 (6*24)
Weight:28.6kg
No. of Bypass Diodes:3
Packing Configuration:31pcs/carton, 620pcs/40hq
Frame:Anodized Aluminium Alloy
Junction Box:IP68
Operating Temperature:-40°C~ +85°C
Maximun System Voltage:1000/1500V/DC(IEC)
Max. Power

560
Material

Monocrystalline Silicon
Power Range

550W-600W
Number of Cells

182
Clear
Compare
Add to wishlist
SKU: 1600892697170 Category:
Description
Products Description
SPECIFICATIONS
Module Type
BSM540M10-72HPH
BSM545M10-72HPH
BSM550M10-72HPH
BSM555M10-72HPH
BSM560M10-72HPH
STC
STC
STC
STC
STC
Maximum Power (Pmax/W)
540
545
550
555
560
Operating Voltage(Vmp/V)
41.96
42.06
42.16
42.24
42.33
Operating Current(Imp/A)
12.87
12.96
13.05
13.14
13.23
Open-Circuit Voltage(Voc/V)
49.60
49.70
49.80
49.90
50.00
Short-CircuitCurrent(Isc/A)
13.74
13.84
13.94
14.04
14.14
Module Efficiency（%）
20.90
21.10
21.30
21.49
21.68
STC: Irradiance 1000W/m2, Cell Temperature 25°C Air Mass AM1.5
More details please send inquiry to us
Packing
Solar Panel Packing Details:31pcs/carton, 620pcs/40hq
Factory Show
Certifications

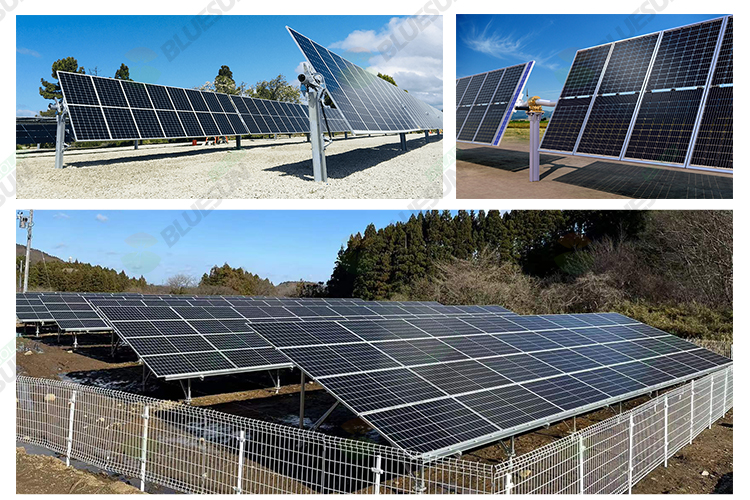

Bluesun Projects
