- Supply Ability
- 5000 Kilowatt/Kilowatts per Month solar panel factory

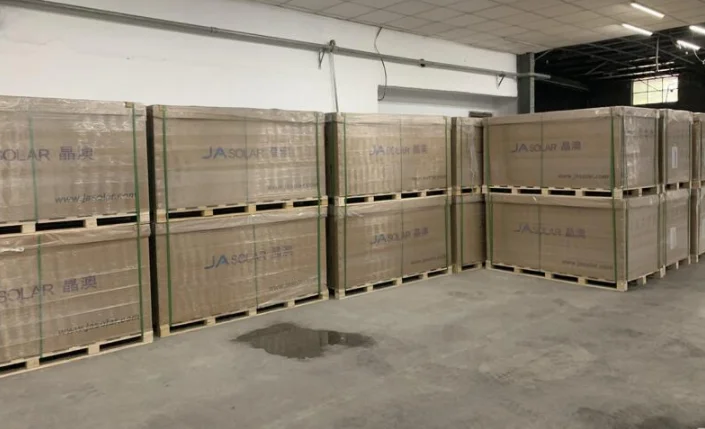

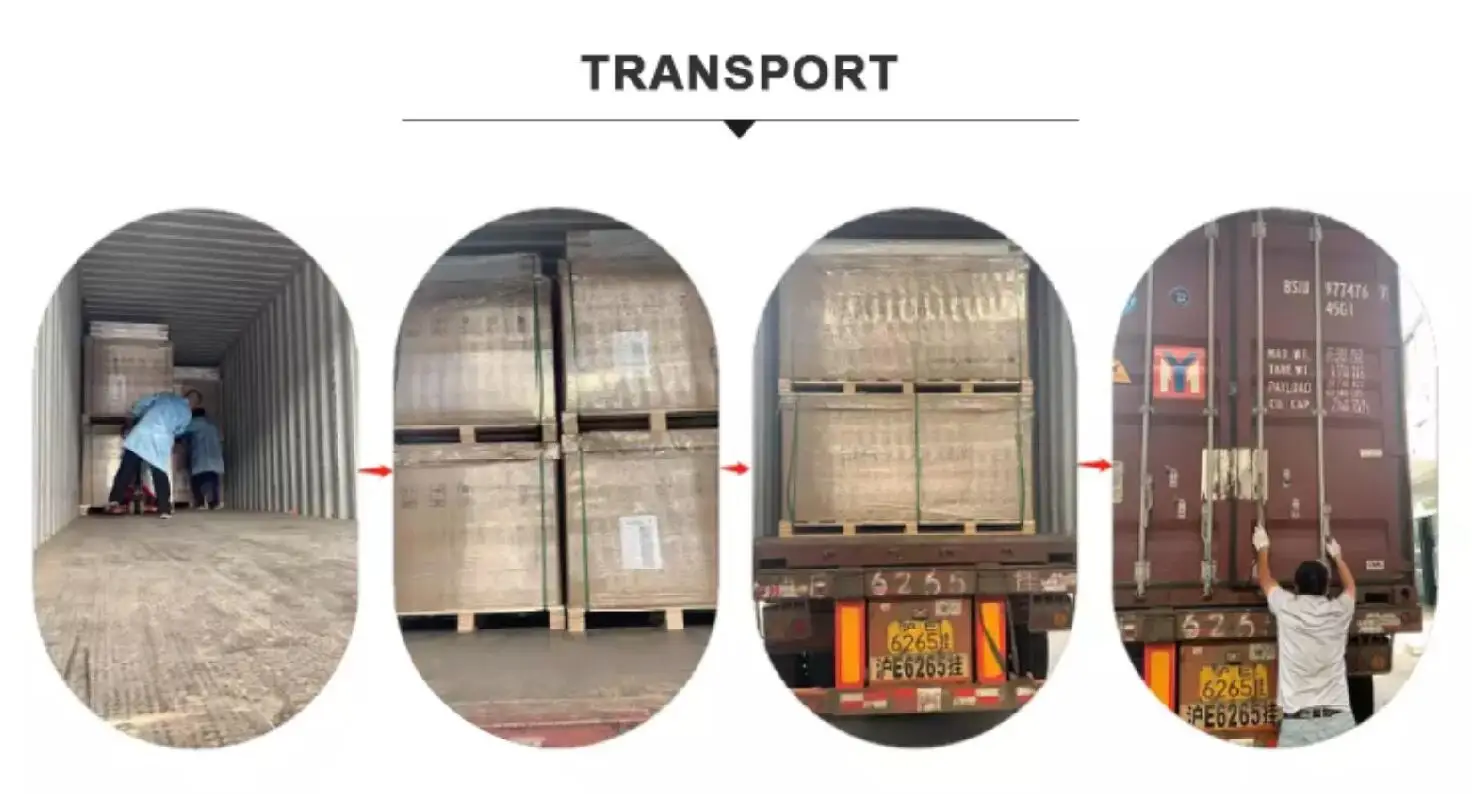

- Packaging Details
144 cells: 682 pieces/40HQ
- Port
Shanghai,Ningbo
- Picture Example:
-
- Lead time:
-
Quantity(watts) 1 – 500000 500001 – 1000000 >1000000 Lead time (days) 7 10 To be negotiated
|

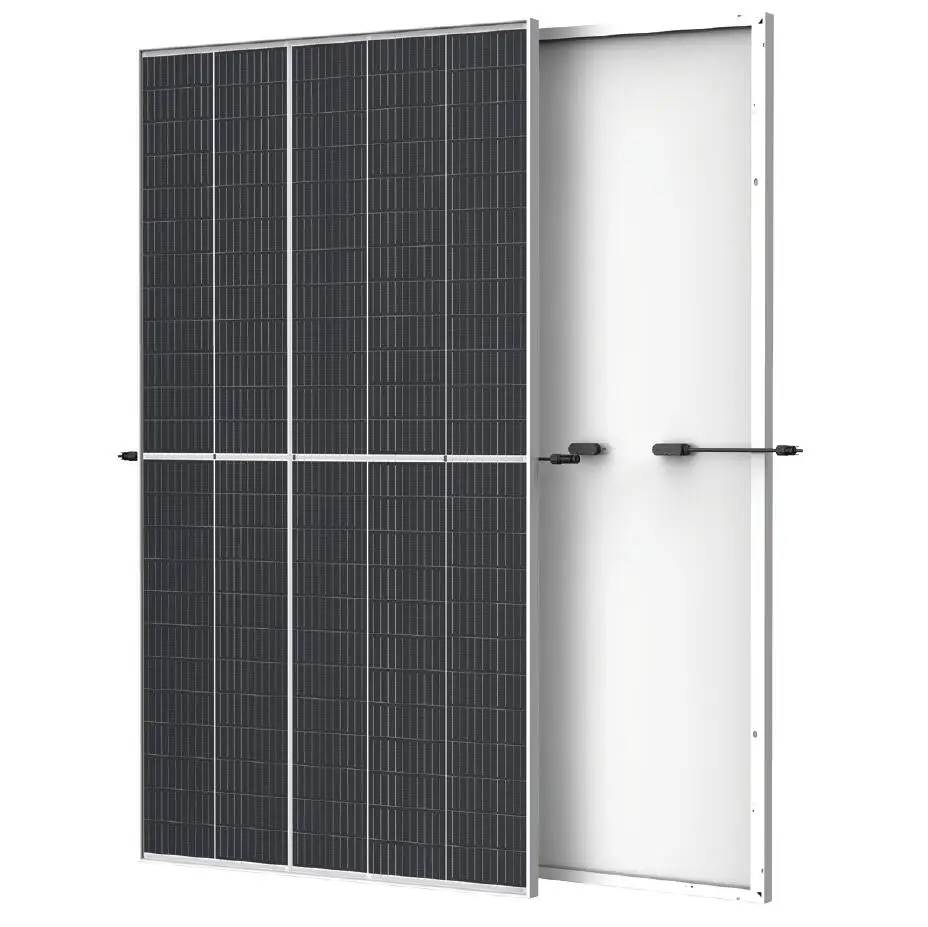

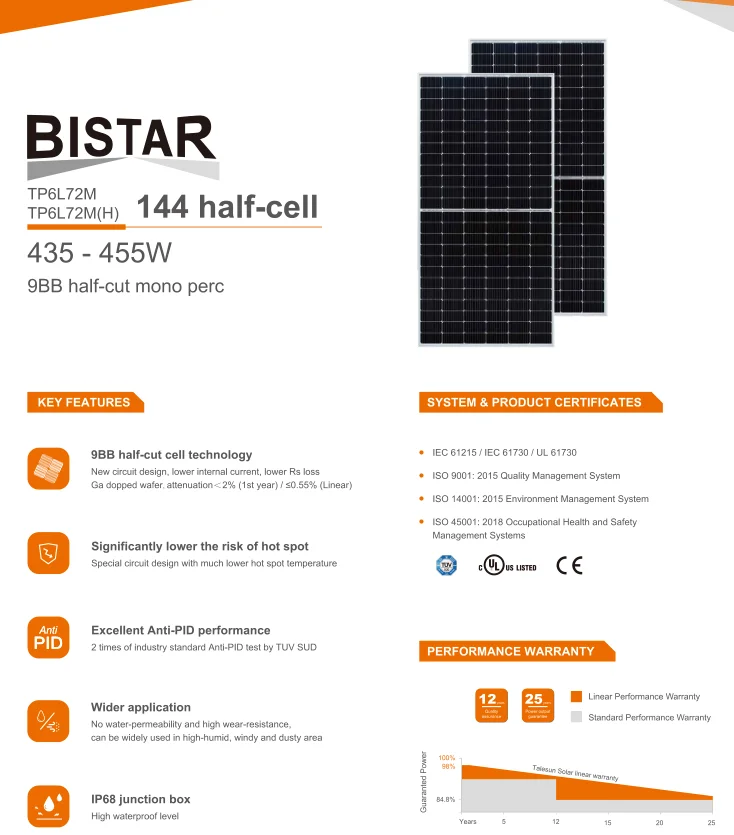

Electrical Parameters of Mono PERC solar panel:
|
||||||
|
Maximum Power at STC (Pmax)
|
435W
|
440W
|
445W
|
450W
|
455W
|
|
|
Optimum Operating Voltage (Vmp)
|
40.3V
|
40.5V
|
40.7V
|
40.9V
|
41.1V
|
|
|
Optimum Operating Current (Imp)
|
10.80A
|
10.87A
|
10.94A
|
11.01A
|
11.08A
|
|
|
Open Circuit Voltage (Voc)
|
49.0V
|
49.2V
|
49.4V
|
49.6V
|
49.8V
|
|
|
Short Circuit Current (Isc)
|
11.33A
|
11.40A
|
11.47A
|
11.54A
|
11.61A
|
|
|
Operating Module Temperature
|
-40 °C to +85 °C
|
|||||
|
Maximum System Voltage
|
1000V/1500V DC (IEC)
|
|||||
|
Maximum Series Fuse Rating
|
20 A
|
|||||
|
Power Tolerance
|
0/+5 W
|
|||||
|
Temperature Coefficient of Pmax
|
-0.36%/℃
|
|||||
|
Temperature Coefficient of Voc
|
-0.26%/℃
|
|||||
|
Temperature Coefficient of Isc
|
0.043%/℃
|
|||||

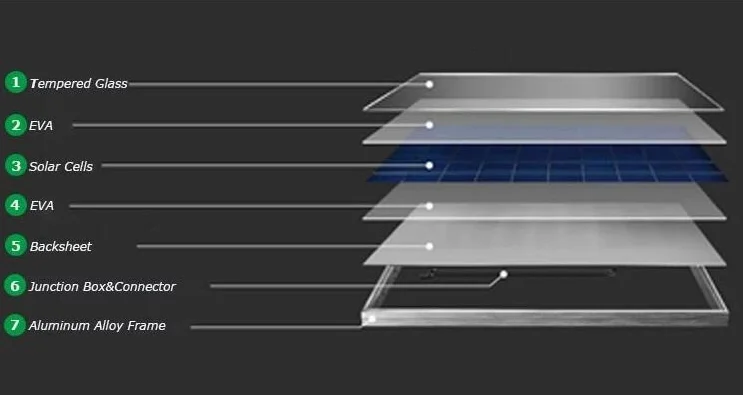

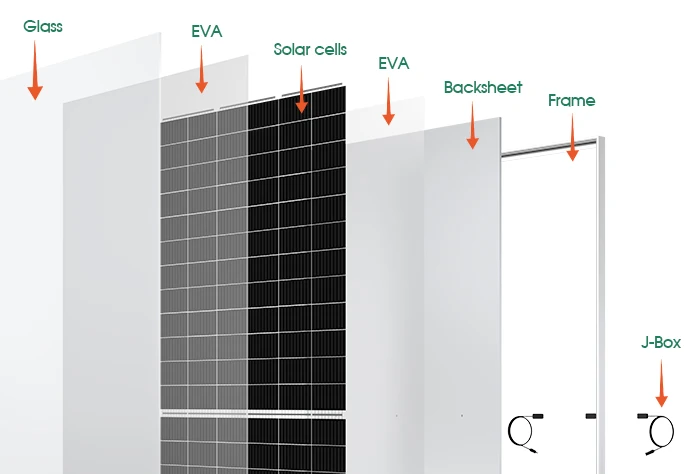

Tempered Glass
* 30% Lower Reflection
* 3.2mm thickness
* >91% Higher Transmittance
* High mechanical strength
EVA
* Higher GEL Content To Provide Good Encapsulation And
Protect Cells From Vibration With Longer
Durability

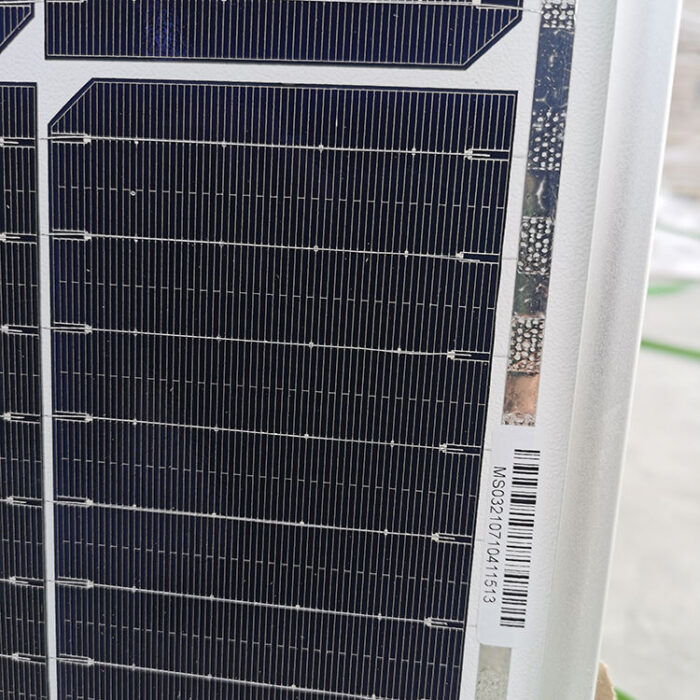

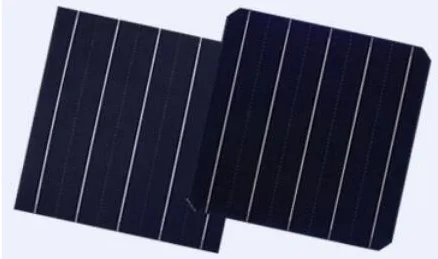

* 93 Fingers PV Cells, Anti-Pid
* Appearance Consistency

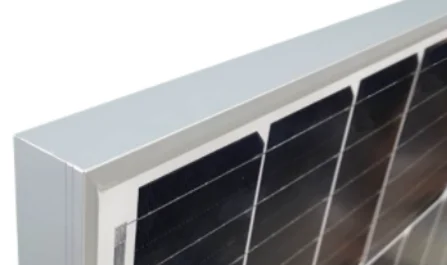

–Conventional frame
–Boost bearing capability and prolong service life
–Serrated-clip design tensile strength
–Seal-lip design glue injection
–Silver or black frames are optional

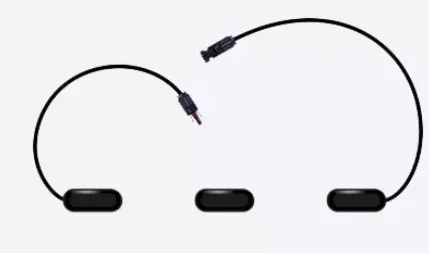

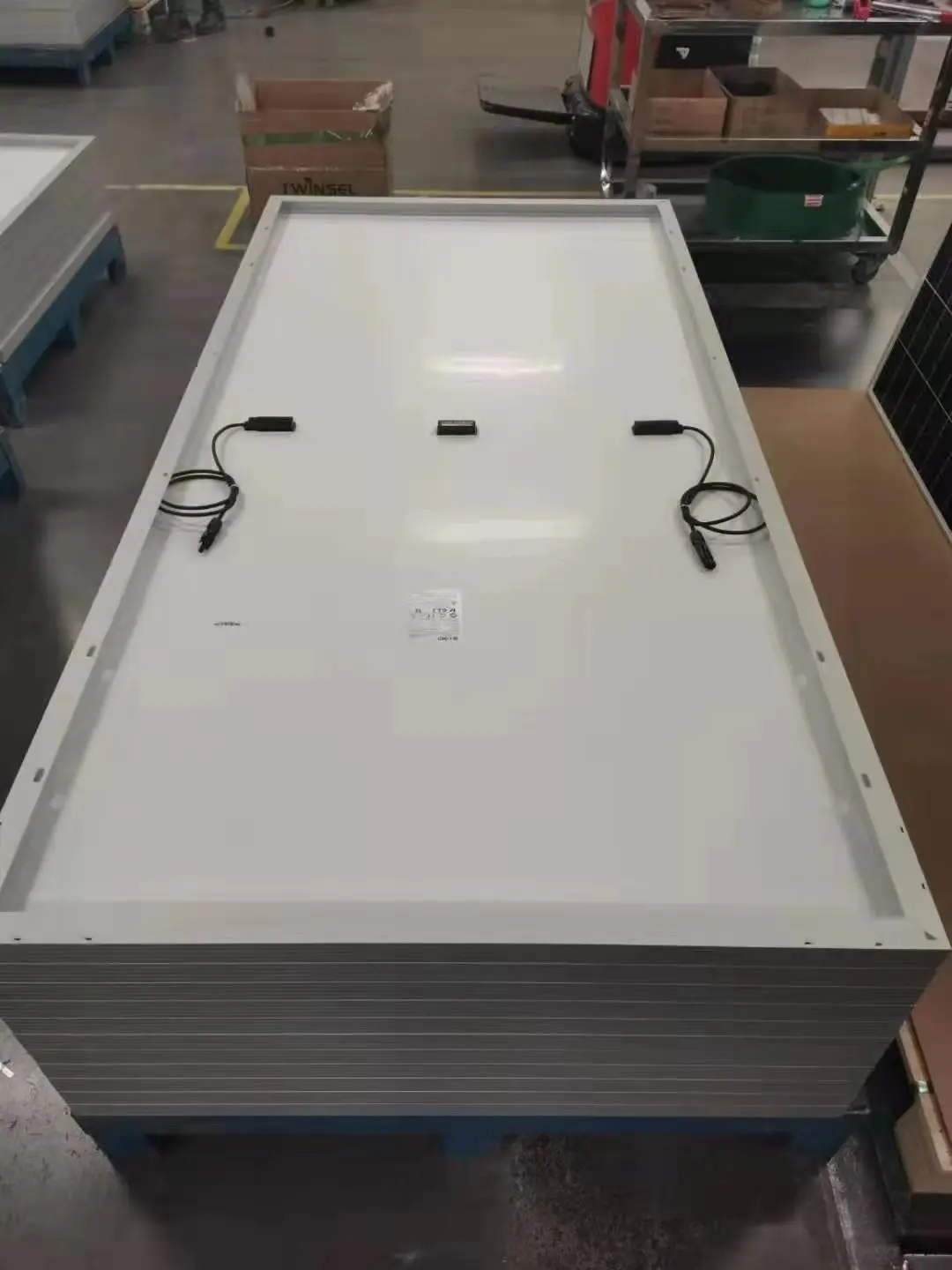

Solar Juction Box
* 4mm2, 6mm2 Wire Size Range
* -40 ℃ to +85 ℃ Temperature Range
* Innovative full-glue-filled junction box
Outstanding sealability

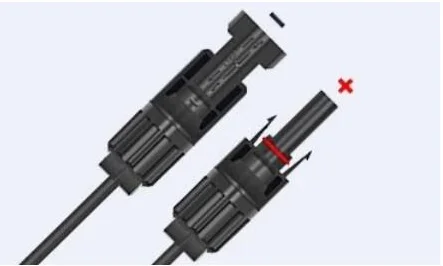

MC4 Connector
* 4mm2 Qualified cable with MC4
* 500N Tensile Strength
TOPSKY ENERGY specializes in solar industry for providing solar cells,solar poly panels, solar mono panels and solar application products and Solar PV system solutions with experience over 10 years.TOPSKY has set up two sole-funded companies in SHENZHEN ,two operating companies in HONGKONG and one Jointed Venture in JIANGSU province successively since 2005.TOPSKY is able to provide customers with annual capacity of 300MW solar cells,400MW solar panels and 60,000 sets of solar power systems.
Main products are as follows:
*125mm 2BB mono solar cell, back-contact sunpower solar cells, 156.75/157mm poly solar cell, 158.75mm/166mm/182mm/210mm monocrystallline solar cells.
*3W-600W standard monocrystalline and polycrystalline silicon solar panel, Mono PERC half-cell solar panels, Bifacial dual glass panel solar, HJT BIFI dual glass panels.
*Solar PET/Epoxy resin/Glass panels, small mini solar panels are offered OEM and ODM service as per customers’ request.
*Exclusive channel to get solar cells and solar panels from top quality brand at more competitive price,they are Risen solar,Trina solar, Longi, Jinko solar, Csun solar, SUN POWER ,URE,MOTECH,QCELLS, SUNTECH, LONGI,BYD, GCL,etc.
TOPSKY always pursues the philosophy of people -oriented and energy-saving as well as cost effectiveness to create long term value for customers.
A: Power from 3W to 550w panel solar with TUV,IEC61215/IEC61730,CEC,CE,UL,ETL,PID,ISO.MCS,etc.Q: What is the warranty of solar panels?
A: 10 years warranty on material and workmanship, 25 years power warranty (90% power output in 10 years,80% in 25 years)Q: Can you quote me the best price of solar cells solar panel?
A: We need more information about your demands, such as the power/material/Qty/etc, then We can suggest the suitable type and quote the best price for you.
Q: Can I just order some samples of small quantity?
A: Sample order in small quantity is acceptable.
